Description:

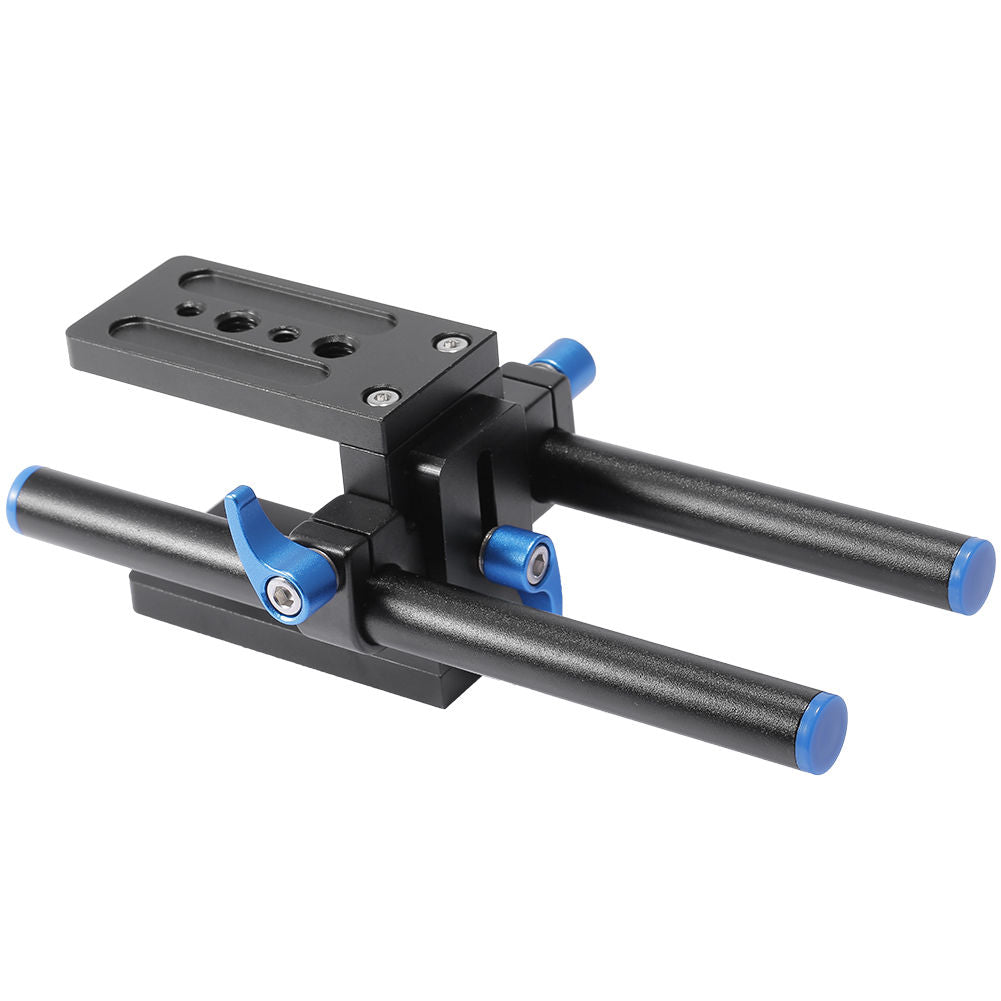

The base plate is a aluminum alloy multi-functional standard rail system that can be used for mounting DSLR Follow Focus Rig. This Rail System can be adjusted both side to side and back and forth. There are two camera height riser adapters support the plate. These height riser helps in adjusting the height of the camera as required.
Features:
Every part can be detached and reassembled easily.
This Rail System has a central Tripod Mounting plate that makes a perfect balance between the camera and the front mount accessories (35mm Adapter/Matte box/Follow Focus).
Plate With the 1/4" screw, compatible with most DSLR/DVR.
The Tripod Mounting plate with the 1/4" and 3/8" screws threads, compatible with many support and tripods.
Made of anodized black aluminum, very durable and strong to support big camera and lens.
Specifications:
Material: Aluminum Alloy
Color: Blue and Black
Rails Length: 9.8"/250mm
Rails Diameter: 0.6"/15mm
Rails Center-to-Center Distance: 2.4"/60mm
Thickness of Adapters: 0.3"/8mm
Tripod Mounting Plate Size: 3.1x1.57"/80x40mm
Tripod Mounting Plate Screws Thread: 1/4" and 3/8"
